M300

Rs. 17,500.00 Taxes Extra

3-in-1 Thin Client Kit for virtual desktops.

The M300 provides a simple, powerful and affordable PC Expansion alternative. As the industry’s first 3-in-1 thin client offering, the M300 delivers a rich PC experience at 1/3 the cost of PCs and typical thin clients. With this breakthrough, NComputing uniquely delivers innovation that multiplies the value customers can expect from thin clients in a virtual desktop environment.

  • M300
  • M300

Key Benefits

  • Up to 45 users per host – Fewer PCs to manage equals lower computing costs per user.
  • Ethernet Connect - Classrooms, labs or offices can connect at greater distances through the local LAN.
  • Numo 2 SoC – Provides PC-quality full screen video streaming.
  • USB Support – Each device includes one USB 2.0 for peripheral support and two USB ports for mouse and keyboard.
  • vSpace Server Software – Simple to install, easy to configure, no complicated hypervisors to manage and no expensive annual licenses to buy.
  • vSpace Management Console – Client devices are easily configured through a remote console
SKU: M300. Category: .

Product Description

Ncomputing M300

M-series for vSpace

Connections

M300 Connections
  1. USB extension A/B
  2. Direct connect port (RJ45)
  3. Reset
  4. Power connector
  5. Ethernet RJ45 port
  6. Video out
  7. USB keyboard and mouse
  8. USB 2.0 peripheral port
  9. Audio out and microphone port

Features

Overview

  • Each M300 kit includes 3 client devices*
  • Share one PC with up to 45 users
  • Ethernet Connected
  • Powered by Numo
  • USB keyboard and mouse
  • USB 2.0 peripheral support
  • Microphone & audio out
  • Energy-efficient (typically 2 watts per user)
  • Slash PC hardware and support costs by up to 75%
  • Powerful vSpace® Server desktop virtualization software included
  • Easy to set up, maintain, manage and secure
  • Compact and reliable (no fans or disks)
  • Remote management software included
Hardware

Kit contents

M300 Kit includes three M300 client devices*, power supply with power cord, vSpace Server software installation CD/license and User’s guide, Quick Install Guide and VESA screws **

Size

Primary client 160mm(w) x 120mm(d )x 35mm(h)

Satellite client: 120mm(w) x 99mm(d) x 33mm(h)

Weight

M300 primary client device: 0.21 kg / 0.46 lbs

M300 satellite client device: 0.12 kg / 0.26 lbs

Kit Shipping Weight

0.96 kg or 2.1 lbs ( (includes 3 client devices, power adapter, documentation, etc.)

Power supply

Input: 100-240 VAC, 50-60 Hz Output: 12 VDC, 1.5 A

Nominal power consumption: ~6 W (without peripheral USB devices)

Front LED indicators

Primary client: Power: connection to power supply

LAN: connection to network green, blinks with traffic

Satellite client: Good connection to primary client

Connection to Host

10/100 Mb/s switched Ethernet (1 Gb connection to host recommended)

Connection between primary and satellite clients

Add Cat 5/6 STP cable up to 5 meters between the primary client and the two satellite clients.

If USB 2.0 support is desired on the satellite client add USB A/B cables

Video Resolution

From 800×600 to 1440×900 up to 24-bit color support

Audio

Stereo output via speaker port

Microphone

Microphone audio input via port

USB Mouse & Keyboard

Stacked USB ports support Mouse and Keyboard devices (HID devices)

USB 2.0

USB 2.0 port for peripheral support (USB port on the front of device. Must add USB A/B cables to enable support)

Internal HW

Numo2 System-on-Chip with SDRAM and flash

Solid-state design, no moving parts, no fans, no local user storage

Embedded NComputing firmware (no local user OS)

Reliability

Reliability (MTBF) >250,000 hours

(calculated using Bellcore Issue 6 TR-332, Case 2, Part I at 40°C)

Certifications

FCC Class B, CE, KCC and RoHS compliant

vSpace User Support

Maximum number of users per host PC is 45
Software

* Cables Not Included: Requires two CAT5e cables and two USB A/B cables and an Ethernet connection.

** Host PC, monitor, keyboard, mouse, speakers, cables and other peripherals are NOT included and must be purchased separately.

*** Application software, client access and OS licenses for the shared PC and M300 may be required by the respective software vendor and must be purchased separately.

**** Please refer to the Microsoft operating system licensing requirements and technical details at ncomputing.com/mslicensing. Specific Linux support information is available at ncomputing.com/kb.

Supported Operating Systems****

Microsoft Windows and Ubuntu Linux

Refer to the support section at ncomputing.com/support for the latest supported versions

PC Host Requirements

See recommended hardware configuration guide atncomputing.com/support

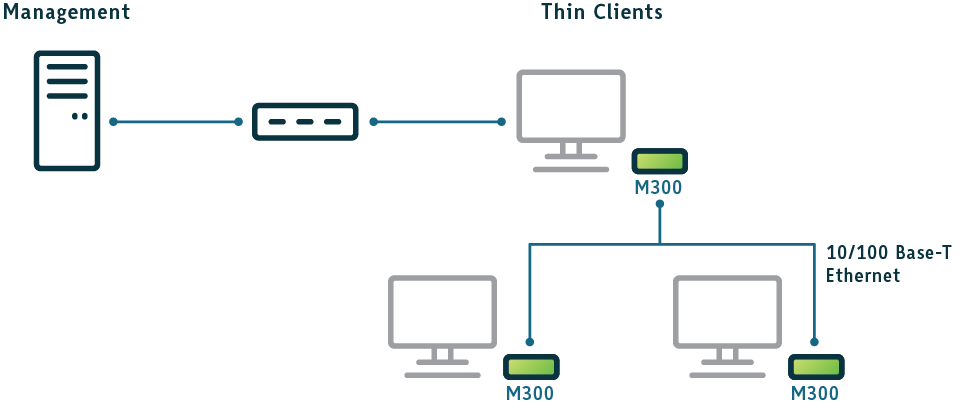

Architecture

M-series architecture
